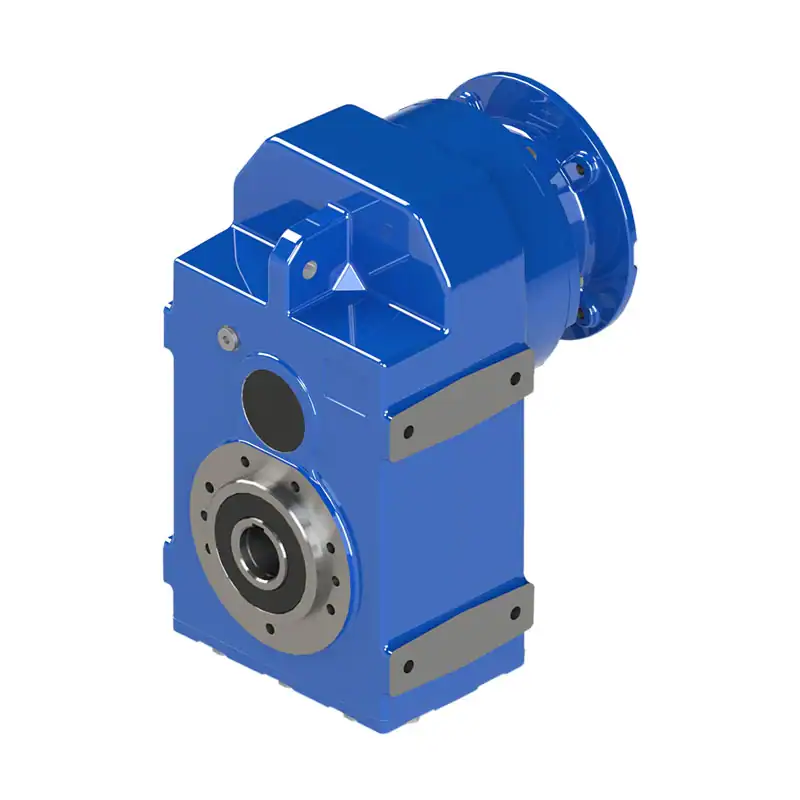

RU D-M702
Efficiency
96%
Output power (kW)
15.50-47.60kW (4P/1400rpm)
Output speed
35.9-348.3
Gear ratio
4.02-39.00
⌀ output shaft
?70mm x 300mm
Frame material
Cast iron (GGG-40)
Additional information
| Mounting type | D |
|---|---|
| Manufacturer | NRW |
| Model | D-M |
| Overall dimensions | 702 |
| Gear ratio range | 4.02-39.00 |
| Output speed range | 35.9-348.3 |
| Efficiency (%) | 96% |
| Available motor flanges | 132-200 |

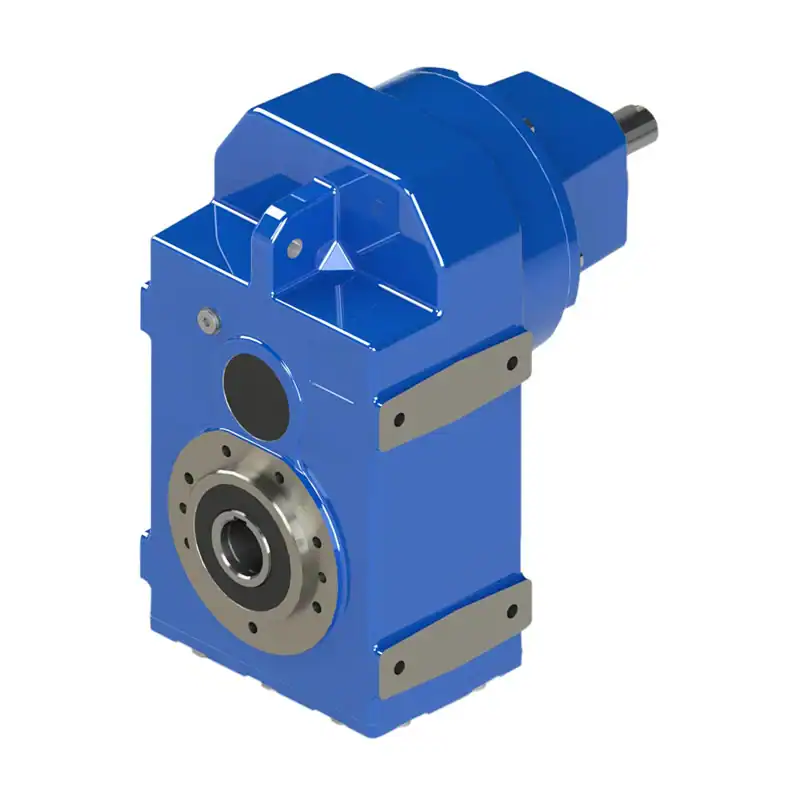

| Motor flange options | B14/B5/W-Input |
| Maximum motor power (kW) | 15.50-47.60kW (4P/1400rpm) |
| Rated torque | 3960Nm |
| Number of stages | 2 stages |
| Frame material | Cast iron (GGG-40) |
| Output shaft diameter | ?70mm x 300mm |
| Input shaft type | backstop, coupled motor, IEC, input shaft, PAM |
| Lubrication options | Foodgrade oil, Mineral oil, Synthetic oil |
| Color | RAL5010 |
| Explosion protection (ATEX) | ATEX version of the gearbox is also available. |
